RNS510/RNS315外挂碟盒是不需要设置的，即插即用.....快餐方式，非常方便

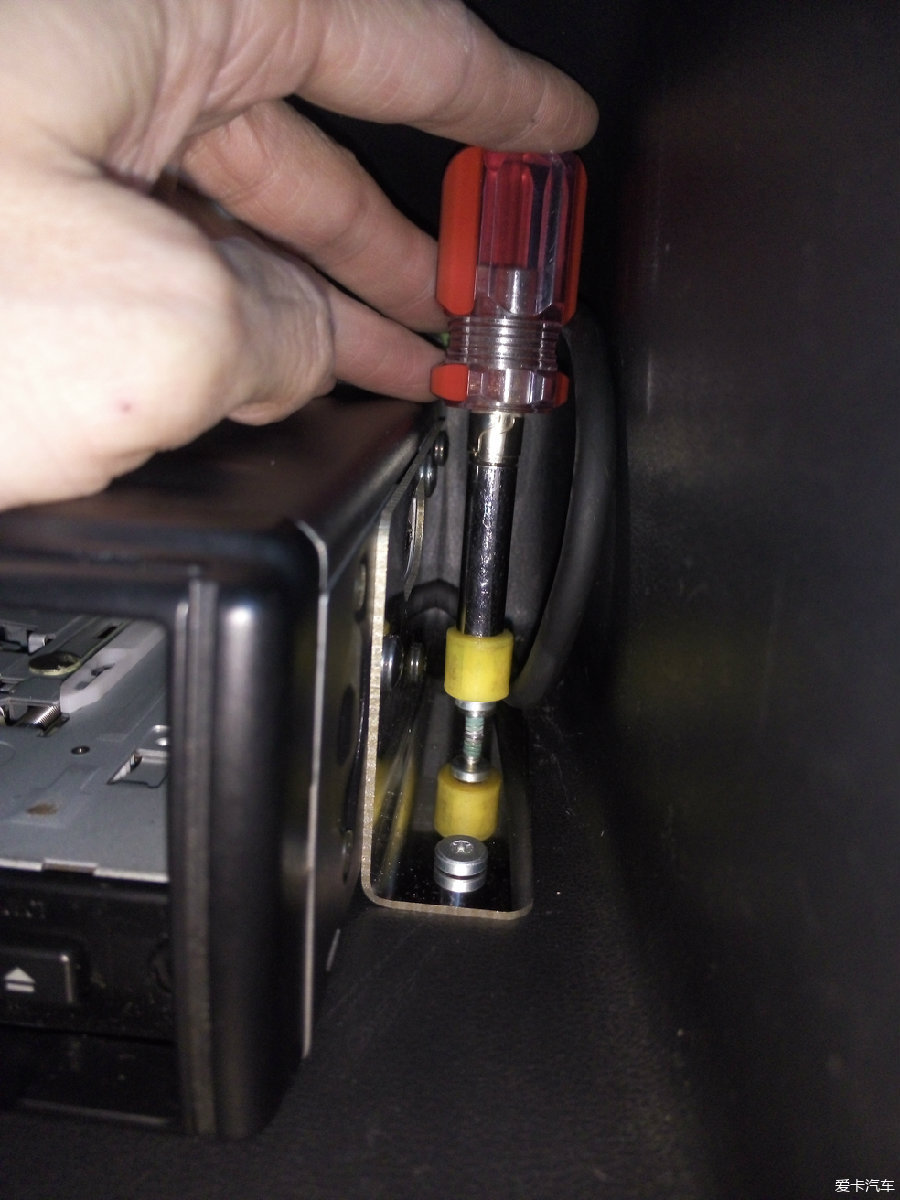

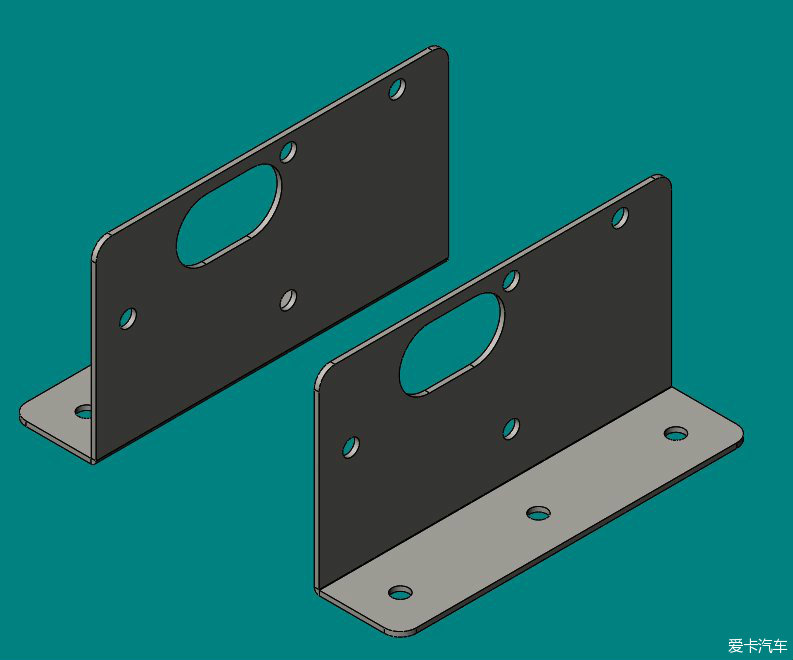

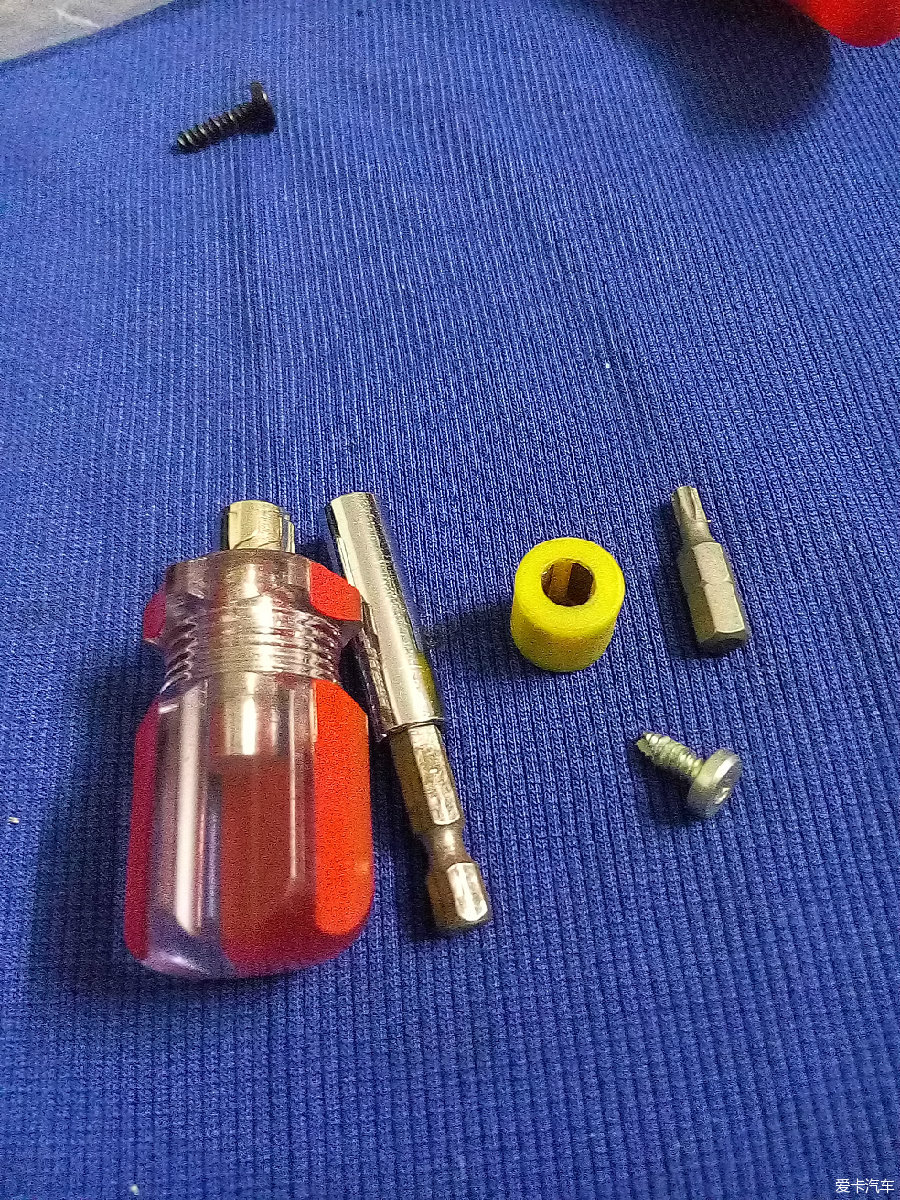

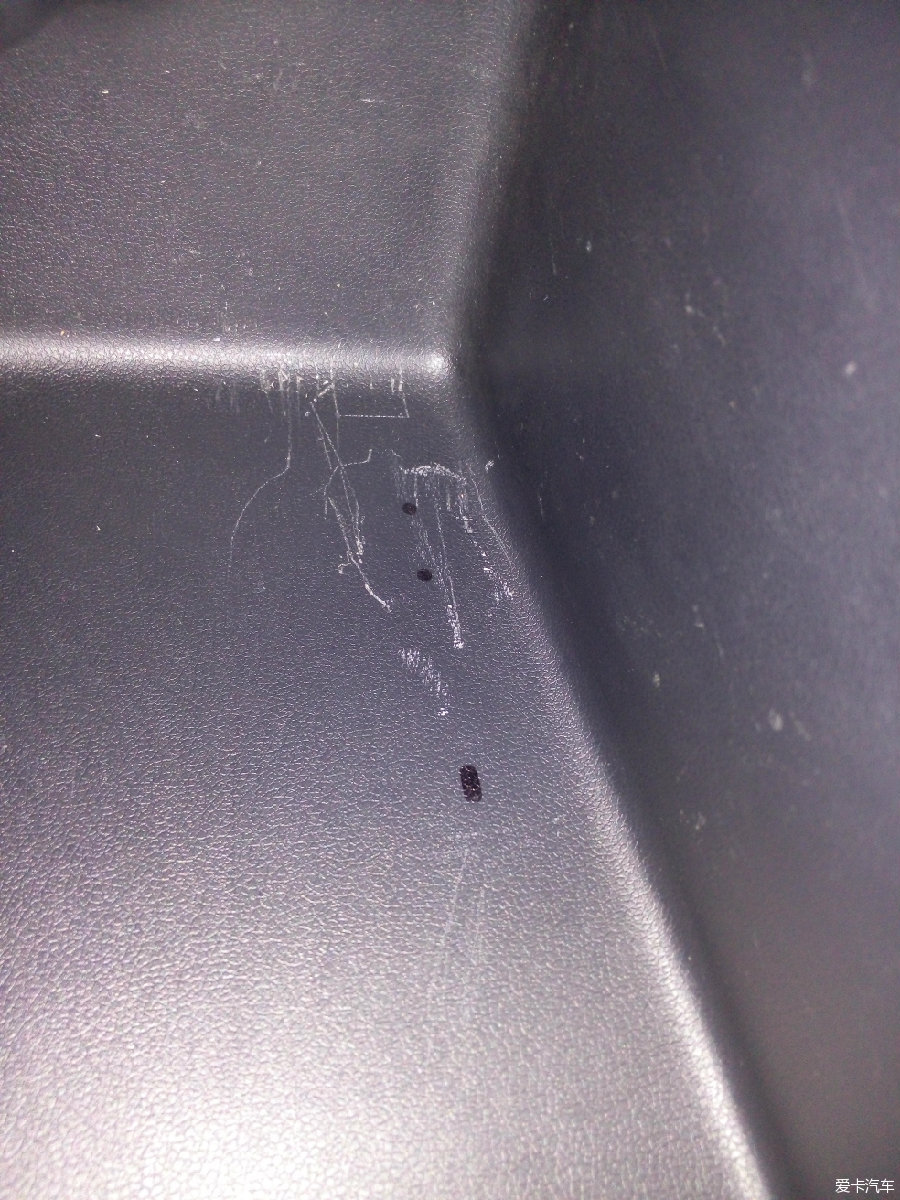

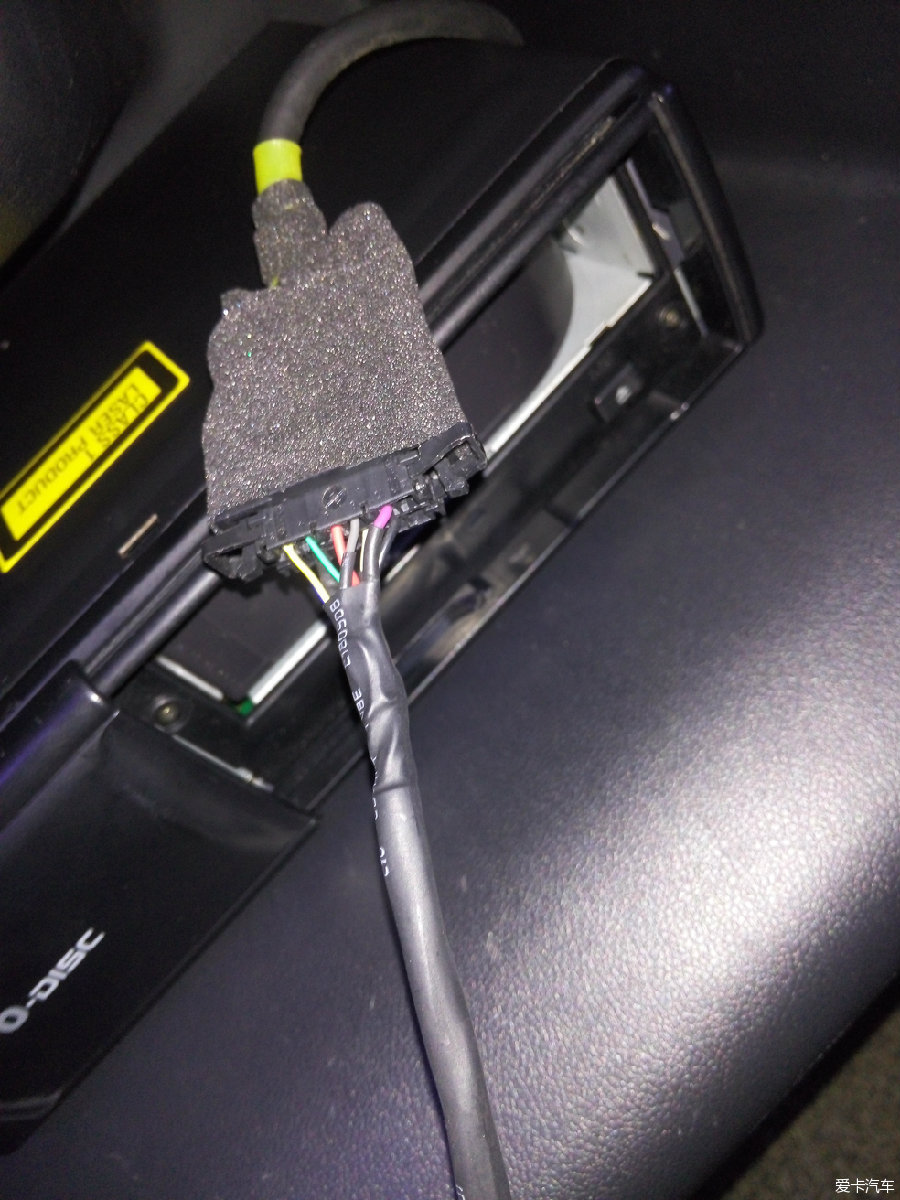

第4插座,12针, CD转换器和CD音频输入
1 – AUX signal input, left AUX信号输入，左
2 – AUX signal earth AUX 信号，地
3 – CD changer, audio signal earth CD变换器，音频信号地
4 – CD changer, voltage supply, positive, terminal 30, contact continuous load greater than 1 A, temporary peak load 12V/5 A
电源正极
5 – Not assigned
6 – CD changer, DATA OUT (data exchange for CD changer control from radio navigation system to CD changer)数据输出
7 – AUX signal input, right AUX信号输入，右
8 – CD changer, left audio channel, CD/L 左声道
9 – CD changer, right audio channel, CD/R右声道
10 – CD changer, control line, switched positive控制线
11 – CD changer, DATA IN (data exchange for CD changer control from CD changer to radio navigation system)数据出
12 – CD changer, CLOCK (internal check protocol for data flow monitoring) 时钟信号
不影响MDI媒体盒使用，两者并存
MDI媒体盒只用AUX音频通道T12的1#/2#音频输入口，外挂碟盒有专用通道，两者互不干涉......
[
本帖最后由 daniel308 于 2016-1-7 08:41 编辑 ]
